Floor Box RPD
Reimagining underfloor power solution

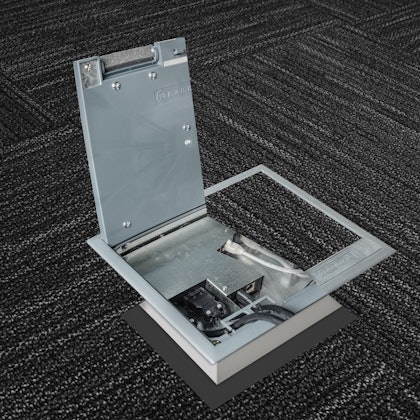

The NETSYSTEM Floor Box RPD for raised floor is meant to accommodate 2 power outputs and 4 blanking plates suitable for up to 8 data keystone or multimedia termination from either cable trunking or an underfloor busbar system.

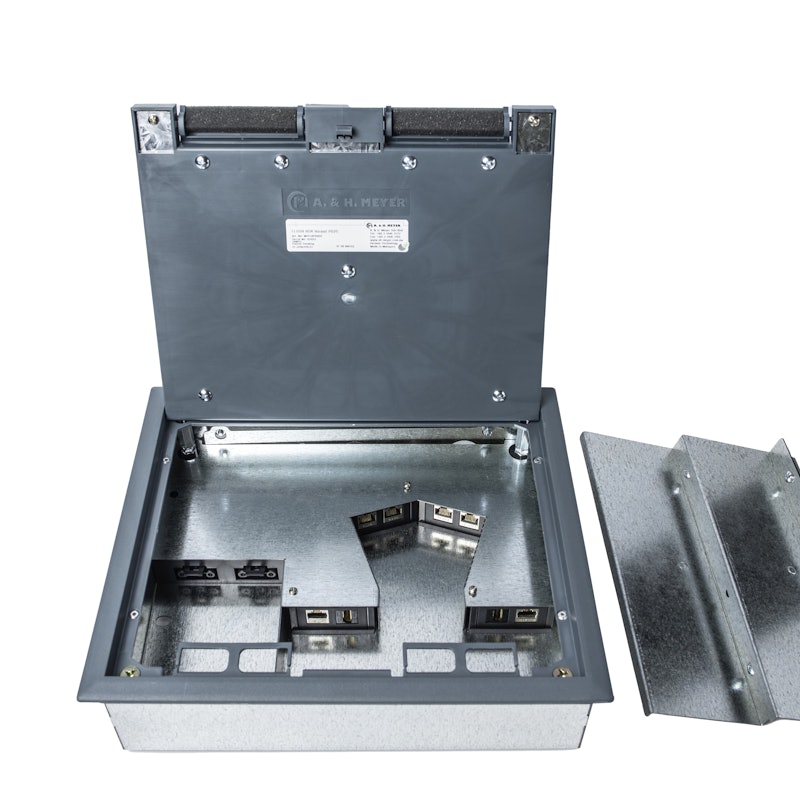

This unit offers a space efficient solution with aesthetically pleasing design. Floor Box RPD comes with a set of mounting brackets to hold it in the raised floor panel. A minimum clearance of 112mm between the raised floor surface and the concrete is required. The Floor Box RPD is ideal to service 2 to 4 workstations with the necessary power and data or multimedia infrastructure.
Colors
Grey
Product Description
- Suitable for Raised Floors
- Lid comes with a special locking device
- Flaps fitted with foam which allows cable to run through them
- Access for cable glands for 20mm and 25mm
Technical Details
- 4 Wieland GST 18/3 connectors with 6 screw terminals each
- Options for RAW and UPS power
- 2 blanking plates suitable for RJ45 keystone modules
- Other termination options for HDMI, USB etc available upon request
- Minimum clearance of 112mm between the raised floor surface and concrete is required
- Individual height adjustable screws to level the frame with the floor
- IP30 rated in accordance with BS EN 60529
- Patented design (PI 2016701277)
- All plastic materials used are fire retardant
Installation Method
- Refer to Installation Guide below at the download section
