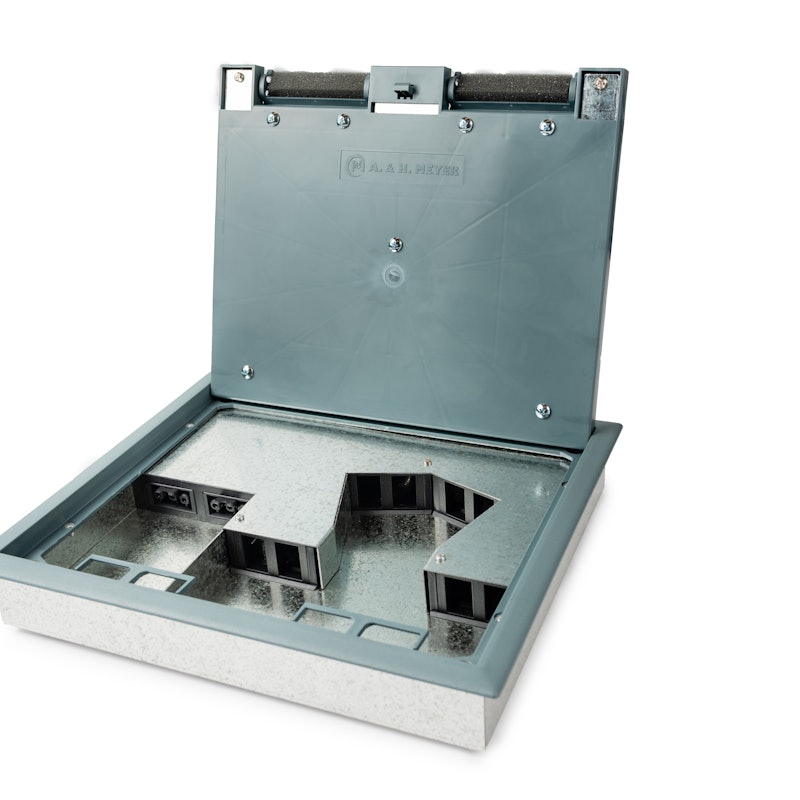

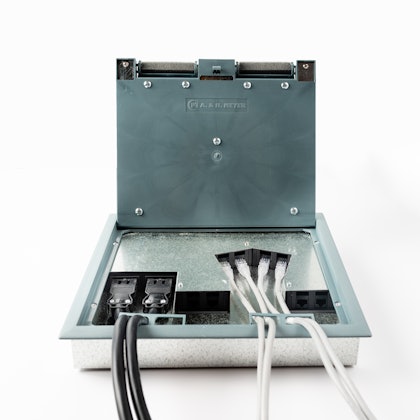

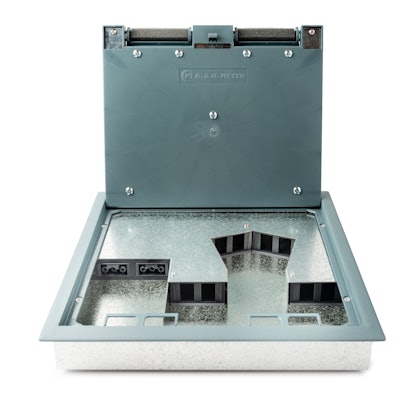

Floor Box PD
Reimagining underfloor power solution
Aesthetically pleasing and ideal for open spaces, this floor box is designed to efficiently distribute power, data and multimedia services in the floor where cable trunking is mounted.
Unsightly cables can now stay concealed under the floor, ensuring a cleaner interior appearance while limited tripping hazards.
With an exceptionally low installation depth of 45mm, the Floor Box PD blend seamlessly with screed flooring.
Colors
Grey
Product Description
- Low installation depth of 45mm
- Lid comes with a special locking device
- Flaps fitted with foam which allows cable to run through them
- Access for cable glands for 20mm and 25mm
Technical Details
- 4 Wieland GST 18/3 connectors (6 screw terminals)
- Options for RAW and UPS power
- 2 blanking plates suitable for RJ45 keystone modules
- Other termination options for HDMI, USB etc available upon request
- Individual height adjustable screws to level the frame with the floor
- IP30 rated in accordance with BS EN 60529
- Patented design (PI 2016701277)
Installation Method
- Refer to Installation Guide below at the download section
