Floor Box P
Reimagining underfloor power solution

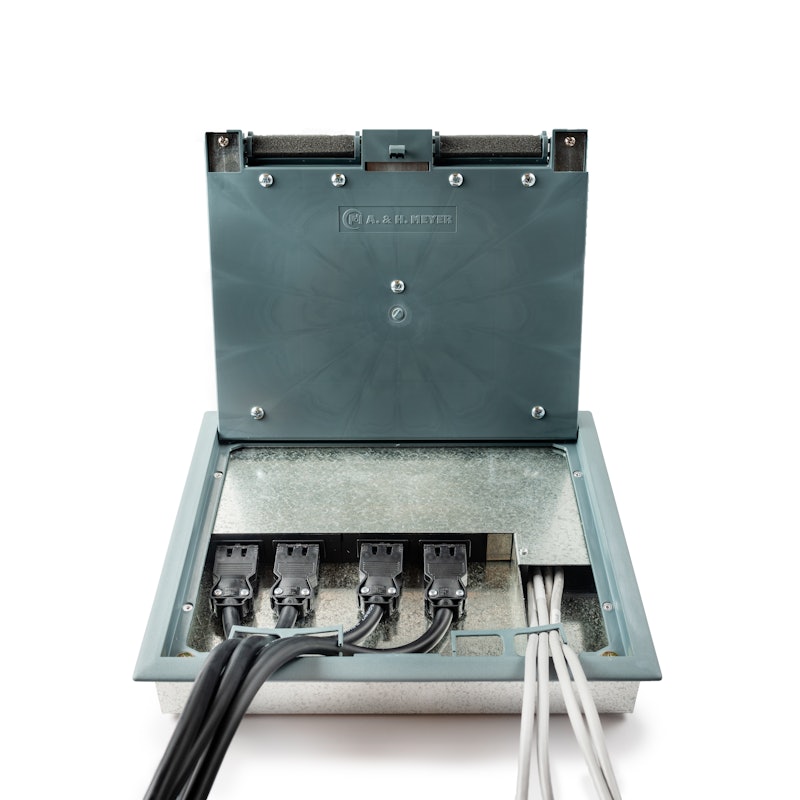

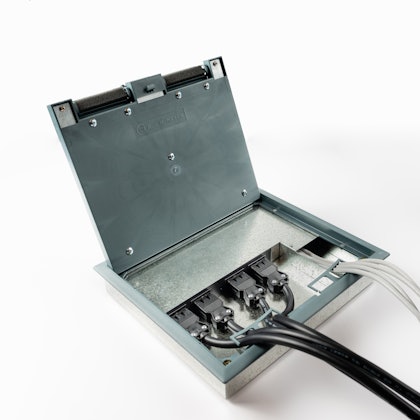

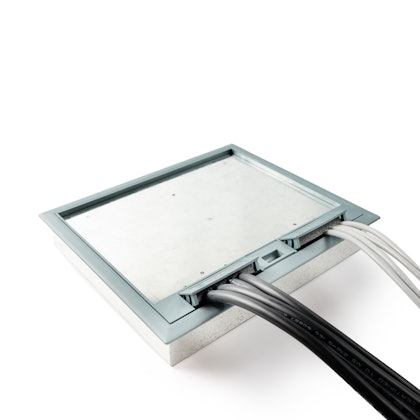

Floor Box P comes with 4 power outputs with direct cable access for data or multimedia. The Floor Box also comes with patented design, PI 2016701277, in accordance with stringent quality regulations.
Colors
Grey
Product Description
- Low installation depth of 45mm
- Lid comes with a special locking device
- Flaps fitted with foam which allows cable to run through them
- Access for cable glands for 20mm and 25mm
Technical Details
- 4 Wieland GST 18/3 connectors (6 screw terminals)
- Options for RAW and UPS power
- 2 blanking plates suitable for RJ45 keystone modules
- Other termination options for HDMI, USB etc available upon request
- Individual height adjustable screws to level the frame with the floor
- IP30 rated in accordance with BS EN 60529
- Patented design (PI 2016701277)
Installation Method
- Refer to Installation Guide below at the download section
